206-3Q Recessed without trim light-W115*H58，Direct light Can connect without end caps--ZHEJIANG MODENG LIGHTING TECHNOLOGY CO.,LTD.

Back


Power	LWH(mm)	Lumen/Power	Item No
Low	118811558	2000lm/20W	206-3Q.H120W
	147811558	2500lm/25W	206-3Q.H125W
	234811558	4000lm/40W	206-3Q.H140W
Medium	118811558	2800lm/28W	206-3Q.C128W
	147811558	3500lm/35W	206-3Q.C135W
	234811558	5600lm/56W	206-3Q.C156W
High	118811558	5320lm/38W	206-3Q.2C138W
	147811558	6580lm/47W	206-3Q.2C147W
	234811558	10640lm/76W	206-3Q.2C176W


Material & technology

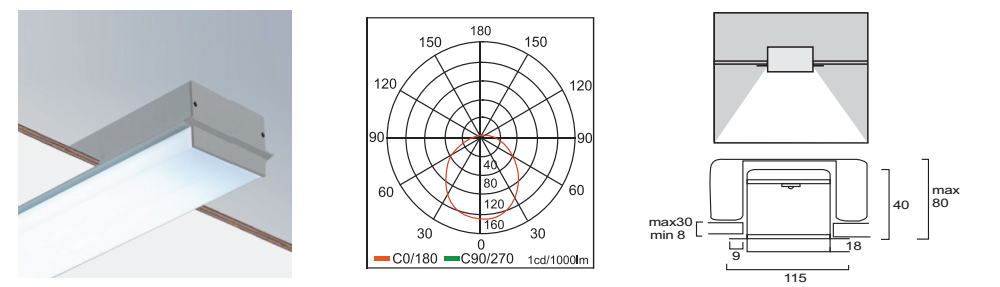

Light distribution：Down & side Light

Light source：High brightness SMD LED

Color rendering：CRI≥80, can customize CRI≥90

CCT：3000K, 4000K, 6500K, can customize 5000K

Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming

Other functions：Optional with emergency kits and multifunction sensor

Lamp material：High grade anodizing aluminum (6063 Alloy), painted with White color, can customize other color

Diffuser：Opal prismatic diffuser

End caps material：ABS

IP；20

Connection：Lamp with LED SMD strip can make shadowless continuous lighting system

Installation：Q-Recessed with trim

~~<i id='6aea8'><strike id='d976b'><tt id='5e09c'><pre id='99cfa'></pre></tt></strike></i>~~

206-3Q Recessed without trim light
