| Power | 灯具尺寸(mm) | 流明/功率 | 订货型号 |
|---|---|---|---|
| Low | 1180*24*120 | 4000lm/40W | 926S.Q120/P120W |
| 1470*24*120 | 5000lm/50W | 926S.Q125/P125W | |
| 2340*24*120 | 8000lm/80W | 926S.Q140/P140W | |
| Medium | 1180*24*120 | 5600lm/56W | 926S.Q128/P128W |
| 1470*24*120 | 7000lm/70W | 926S.Q135/P135W | |
| 2340*24*120 | 11200lm/112W | 926S.Q156/P156W |
| Power | 灯具尺寸(mm) | 流明/功率 | 订货型号 |
|---|---|---|---|
| Low | 1180*24*120 | 4000lm/40W | 926S.P120W |
| 1470*24*120 | 5000lm/50W | 926S.P125W | |
| 2340*24*120 | 8000lm/80W | 926S.P140W | |
| Medium | 1180*24*120 | 5600lm/56W | 926S.P128W |
| 1470*24*120 | 7000lm/70W | 926S.P135W | |
| 2340*24*120 | 11200lm/112W | 926S.P156W |
| Power | 灯具尺寸(mm) | 流明/功率 | 订货型号 |
|---|---|---|---|
| Low | 1180*24*120 | 2000lm/20W | 926S.P120W |
| Medium | 1180*24*120 | 2800lm/28W | 926S.P128W |
也可订制上下射光，灯具尺寸不变，功率增加。 Can customize Direct/Indirect light, the fixture size is the same, the power will be increase.
Material & technology
Light distribution：Direct/Indirect Light or Direct Light
Light source：High brightness SMD LED
Color rendering：CRI≥80, can customize CRI≥90
CCT：3000K, 4000K, 6500K, can customize 5000K
Driver：Equipped with high conversion rate driver, optional with 0-10V dimming, DALI dimming, SCR dimming
Lamp material：High grade anodizing aluminum (6063 Alloy), painted with White, can customize Wooden color
Diffuser： Opal prismatic diffuser with high transmittance and uniformity light
End caps material：ABS
IP：20
Connection：The luminaries can be connected with end cap

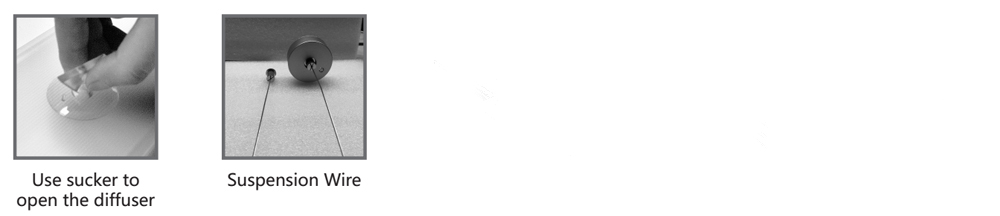

Installation：-Suspended, W-Wall mounted
